P5 & P7 Plane Bearing Slides
P5 & P7 feature composite bearing ways, hard chrome shafts, double seals. Way covers not required. Lube free! Least expensive and most durable.
Load capacity: 800 lb
Max stroke: 500mm
Welker Linear Slides provide all the desired features that engineers and designers need. The compact, yet robust, powered slides provide symmetry and flexibility of installation. Available in various sizes and capabilities. They can be mounted in any orientation and are designed to operate successfully in harsh environments: welding, foundry, sandblasting, machining. For paint spray applications, please call Welker.
Powered Slide Application Verification
Test the payload, distance, and angle of your application. See Resources section of individual slides for availability.
| Slide Series | Max Load | Max Stroke |
|---|---|---|
| P5/P7 Plane Bearing | 800 lb | 500mm |
| R2 Rail | 2000 lb | 500mm |
| LPM, LP1 Rail | 250 lb | 495mm |
| LP2 Rail | 500 lb | 495mm |
| NL3/WL3 Low Profile Rail | 4000 lb | 480mm |
| VOSS Heavy Duty Rail | 4000 lb | 500mm |
| Tool Tray Heavy Duty Rail | TBD | 5100mm |
| AES Single Extrusion Rail | 500 lb | 4400mm (screw) |
| AES Double Extrusion Rail | 1000 lb | 4400mm (screw) |
| BES Single Extrusion Rail | 793 lb | 8800mm (belt) |
| MES Mini Extrusion Rail | 250 lb | 3720mm (belt) |
Note: DB Guided Slides have moved to Shot Pins page!
P5 & P7 feature composite bearing ways, hard chrome shafts, double seals. Way covers not required. Lube free! Least expensive and most durable.
Load capacity: 800 lb
Max stroke: 500mm
R2 rail slide can handle heavier loads with the shortest configuration available. Single or dual position applications. Kevlar shields protect rails from weld spatter, easy to replace. Optional auto-lube.
Load capacity: 2000 lb
Max stroke: 500mm
R2 Rail Slide is made to order only

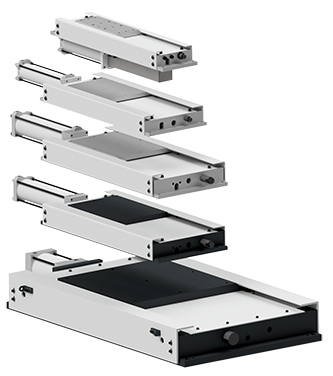

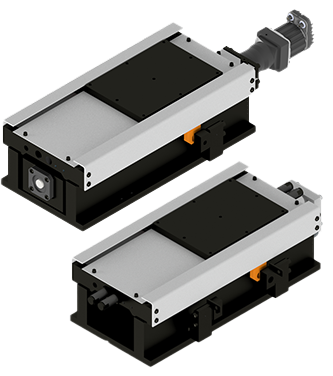

LP low profile rail slides feature aluminum carriage & base plate. Fixed metal shroud protects rails at all times.
LPM load capacity: 250 lb. Rod lock cylinder option
LP1 load capacity: 250 lb
LP2 load capacity: 500 lb
Max stroke: 495mm
WL3 slide offers narrow and wide solutions for low profile applications. Kevlar shields protect rails from weld spatter, easy to replace. Optional auto-lube.
Load capacity: 4000 lb
Max stroke: 480mm
NL3 Rail Slide is Made to order only
VOSS compliant components for Ford applications. 4" bore NC9 trunnion pneumatic cylinder, for narrow or wide loads. Use the worksheet in the catalog to request CAD drawings.
Load capacity: 4000 lb
Max stroke: 500mm
Offering both cost savings and enhanced operator safety, Welker Presentation Slides have become an industry standard in robotic weld cell parts delivery applications. Constructed of heavy-duty aluminum extrusion, Presentation Slides are suitable for harsh environments.
Multiple configurations available
Belt or screw drive
Tool tray shuttles feature electric actuators and absolute encoders for high repeatability. Carriage plates are machined to customer hole patterns. Precision homing/lockout pins provided. A hard-plumbed manifold is available for easy access lubrication.
Load capacity sized per application
